Name: VOC Detector, Portable PID Gas Detection Sensor Gas Controller PG610-VOC
Brand: VOC Detector, Portable PID Gas Detection Sensor Gas Controller PG610-VOC
SKU: PG610-VOC
Price: 1 USD
Availability: InStock
Rating: 5 (175 reviews)

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Warranty: 12 months

Customized support: OEM, ODM

Model Number: PG610-VOC

Detecting Gas: VOC

Range: 0-1000ppm

Sampling mode: natural diffusion or pump suction

Data storage: 5000

Deviation: â‰¤Â± 3% F.S

Working time: >72 h (continuous)

Protection grade: IP66

Weight: 140g

Alarm type: vibration,flashing,sound

accuracy: 1ppm

Βασικές πληροφορίες

Model Number: PG610-VOC

Πληρωμής & Αποστολής Όροι

Packaging Details: Standard package or customized

Supply Ability: 1500 Piece/Pieces per Week

Περιγραφή προϊόντων

Product overview

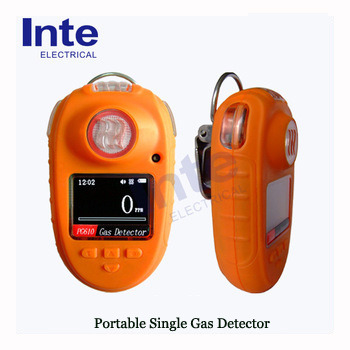

PG610-VOC is portable single gas detector, can continuously detect the concentration of VOC gas.

PG610-VOC adopts imported photoion sensor. It has excellent sensitivity and good repeatability.

It has a small body, easy to take, waterproof, dustproof, explosion-proof.

Main features

Big OLED display, high brightness, high-definition
Automatically save detecting data for 5000 records
Bar display mode, display the concentration of the gases
Low power consumption, save energy, save electricity
Real-time clock display function
Key operation needs to input password to prevent wrong operation
Automatic calibration function, prevent measuring error
Recover function, prevent the loss of data
Battery power real-time diaplay, under-voltage hint, lower power automatic shutdown
Standard mini-USB charging interface, charger is compatible with computer and cell phone's
Connected with computer to realize data download and parameter setting(optional)
Alarm type: audible and visual alarm, vibration alarm
STEL and TWA alarm function for toxic gases
Power on self-test function
Adjuatable high and low alarm level

Technical Parameters

Detecting Gas	VOC
Measuring Range	0-1000ppm, 0-50ppm
Sampling Method	diffused or pump suction (external electric sa mpling pump)
Deviation	≤± 3% F.S
Respond Time	T90 < 30 s
Working Temperature	toxic gas: - 20 °C ~ + 50 °C
Working Temperature	Combustible gas: - 40 °C ~ + 70 °C
Working Humidity	< 95% R.H. no condensation
Sensor life	2-3 year
Display Mode	OLED screen shows density, time, battery power, Alarm state,
Display Mode	percentage progress bar
Data Storage	5000 records
Upload Data	connected to computer via data line(optional)
Alarm Type	Light: wide-angle light emitting diode
	Sound: 90 Db humming; when concentration increased, frequency increases
	Vibration: oscillator speed of 1300 r/min
Working Voltage	DC3.6 V lithium ion battery, 1000 mAh
Charging Time	4 h ~ 6 h
Working Time	combustible gas more than 8 h (continuous); Toxic gas more than 72 h (continuous)
Protection Class	IP66
Weight	140 g
Appearance Size	98 mm × 60 mm × 24 mm

PG610 Diagram

Product Information Chart

Product Model	Detected Gas	Measuring range	Resolution	Respond Time	Sensor service life
PG610-CO	CO	0-1000ppm	1ppm	≤20 s	2-3 year
PG610-O₂	O₂	0-30%VOL	0.1%vol	≤20 s	2-3 year
PG610-O₃	O₃	0-10ppm	0.1ppm	≤30s	2-3 year
PG610-H₂S	H₂S	0-100ppm	1ppm	≤30 s	2-3 year
PG610-H₂	H₂	0-1000ppm	1ppm	≤30 s	2-3 year
PG610-CL₂	CL₂	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-NH₃	NH₃	0-200ppm	1ppm	≤30 s	2-3 year
PG610-SO₂	SO₂	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-NO	NO	0-250ppm	1ppm	≤30 s	2-3 year
PG610-NO₂	NO₂	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-CH₂O	CH₂O	0-50ppm	0.01ppm	≤30 s	2-3 year
PG610-HCL	HCL	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-HCN	HCN	0-20ppm	0.1ppm	≤30 s	2-3 year
PG610-ETO	ETO	0-100ppm	1ppm	≤30 s	2-3 year
PG610-CLO₂	CLO₂	0-10ppm	0.1ppm	≤30 s	2-3 year
PG610-CO2	CO2	0-5.00%vol	0.01%vol	≤30 s	≥5 year
PG610-EX	Combustible gas	0-100%LEL	1%LEL	≤30 s	3-5 year
As for unlisted detected gas and measuring range, please contact with our company

FAQ

Q1.What's the minimum order?

A: I piece is welcomed

Q2. What about the lead time?
A: We usually deliver the goods in 2-5 working days after the order confirmed.

Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.

Q4. Is it OK to print my logo on the gas detector?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.

Welcome to inquiry. Inte electrical will be your best choice!
